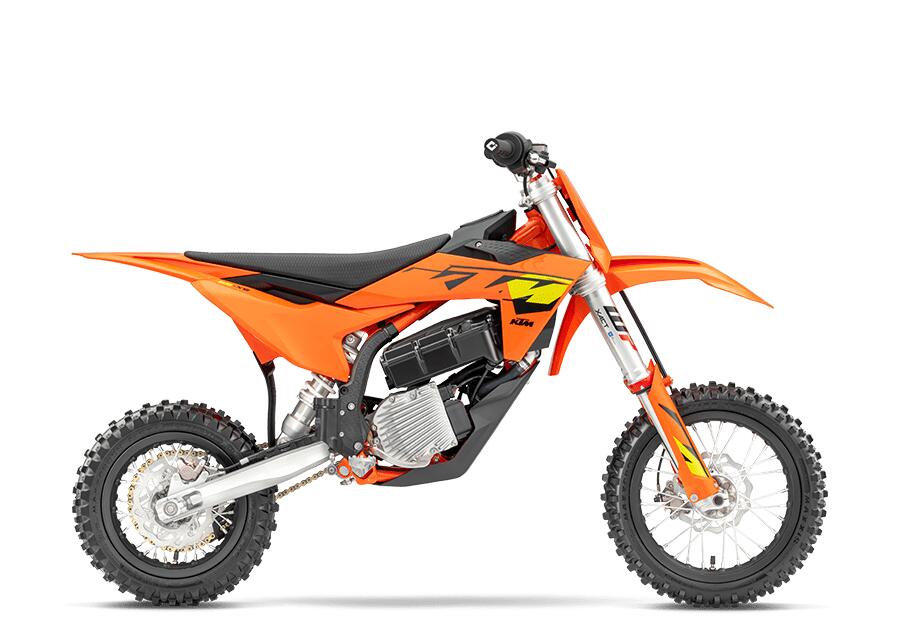

New 2027 KTM SX-E 5

Vehicle Details

Stock #: 40843
VIN: VBKM1A0E4VM034568

Exterior Color: Orange

Test Ride

Get Pre-Approved

Request More Info

Similar Vehicles

Frequently Purchased Together

Please select accessories from the list.
Click on the accessory link below to get more details.

LEADING THE CHARGE

The KTM SX-E 5 represents the latest generation of advanced all-electric mini-crossers, aimed at both beginner and competitive junior racers. Setting the benchmark in adjustable ergonomics, the KTM SX-E 5 is a high-quality, real-world READY TO RACE alternative to the gas-powered 50 cc engine. The KTM SX-E 5 is not a toy: this is a bona fide platform for juniors who are finding all the joys of having a throttle in their right hand without the complications of emissions, complex maintenance, and noise. Whether riding, practicing, or racing, the fresh KTM SX-E 5 is both everything they ever wanted and everything they'll ever need - proudly designed, developed, and produced in Austria.

Highlighted Features

Frame: The KTM SX-E 5 frame is forged from lightweight, high-strength Chromoly steel profiles and combines maximum longitudinal stiffness with optimum torsional rigidity. The modification provides more robustness, handling and a tougher rear shock mounting point. The subframe is made of lightweight, fiberglass reinforced plastic, which can be mounted in diffrent positions for different seat heights. This means that the KTM SX-E 5 can 'grow' with your young racer.

Wheels: KTM SX-E 5 is fitted with 12" and 10" lightweight, black anodized, aluminum rims which provide the highest strength and durability for any eventuality. These are wrapped in MAXXIS MX-ST tires, to provide unmatched traction on any surface.

Front suspension: The KTM SX-E 5 boasts a fully adjustable, upside-down WP XACT air fork with a 35 mm tube diameter and 205 mm of travel. This ensures outstanding comfort, damping characteristics, and directional stability. Another main benefit for junior riders is that the air spring fitted in the left fork leg can be adjusted perfectly to the rider's weight using a simple air pump.

Rear suspension: The premium WP XACT shock absorber is linked directly to the cast swingarm, providing excellent damping performance. It is fully adjustable, meaning you can set the damping perfectly to suit the rider's preference and track conditions. The shock absorber allows for 193 mm of rear-wheel travel.

Brakes: The KTM SX-E 5 is fitted with front and rear hydraulic brakes, combined with lightweight wave discs that are easy to control even for the youngest riders; helping to build their confidence, and teaching them correct brake control.

Engine

Electric motor: 48 V - BLDC motor with outer rotor

Max. power: 5 kW / 3,900 rpm

Torque: 13.8 Nm

Max. motor speed: 6000 rpm

Battery capacity: 21 Ah

Charging time 100 %: 70 min.

Rated output: 2 kW / 3,200 rpm

Secondary gear ratio: 8:46

Traction battery: Lithium-Ion KTM PowerPack

Charger line voltage: 80-240 V/50-60 Hz

Charging power: 900 W

Charging time 80 %: 45 min.

Chassis

Frame design: Chrome-molybdenum steel central-tube frame

Rear subframe design: Glass fiber reinforced plastic

Handlebar: Tapered aluminum Ø 28/22/18 mm

Front brake: Disc brake

Rear brake: Disc brake

Front brake disc diameter: 160 mm

Rear brake disc diameter: 160 mm

Brake disc diameters (front/rear): 160 / 160 mm

Wheels: 1.5 x 12"; 1.6 x 10"

Tyre width (front): 60

Tyre height (front): 100

Tyre width (rear): 2.75

Chain: 415, Non-sealed

Steering head angle: 66 °

Suspension

Front suspension: XACT 35 WP Upside-Down fork, Ø 35 mm

Rear suspension: XACT WP mono shock

Suspension travel (front): 205 mm205 mm

Suspension travel (rear): 193 mm

Steering head angle: 66 °66 °66 °

Fork offset: 22 mm

Dimensions

Seat height: 682 mm

Wheelbase: 1028 ± 10 mm

Ground clearance: 259 mm
